2D Matrix Fiber Arrays with Microlenses (MLA)

High-density 2D Optical Fiber Collimator Arrays featuring active alignment with Microlens Arrays (MLA). Achieve superior pointing accuracy (< 0.2°) and minimal tilt error for complex beam-shaping tasks. Fully customizable fiber layouts compatible with SM, PM, and MM fibers.

Description

2D Matrix Fiber Arrays with Microlenses: Precision Beam Shaping

High-Performance Collimated Output with Active Alignment

Our 2D Optical Fiber Collimator Arrays are engineered for high-density applications requiring superior beam control. By utilising Active Alignment technology, we pair 2D fiber arrays with high-precision Microlens Arrays (MLA) to deliver collimated output beams with industry-leading accuracy.

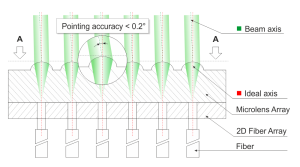

The compact architecture supports a high volume of beams while maintaining an angular deviation of less than 0.2°. To ensure seamless integration and durability, the entire assembly can be housed in a rugged stainless steel flange.

Why Choose Active Alignment?

Standard alignment often falls short in high-speed or high-precision environments. Our active alignment process ensures:

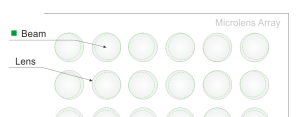

Minimal Tilt Errors: Precise positioning of each fiber relative to the MLA.
Customisable Optics: We select Microlens Arrays based on your specific beam diameter, fiber type, and operating wavelength.
Precision Geometry: Fully customisable 2D layouts, including bespoke spacing and pitch dimensions.

Key Advantages

Superior Accuracy: High-precision beam positioning with minimal tilt error.
Full Customisation: Tailored array dimensions, fiber spacing, and housing designs.
Versatile Connectivity: Compatible with standard interfaces including E2000, LC, SC, FC, ST, MTP/MPO, and MMC connectors.
Broad Fiber Support: Optimised for Single Mode (SM), Polarization Maintaining (PM), and Multi-Mode (MM – Step/Grin) fibers.
Robust Integration: Stainless steel flange housing for easy handling and long-term reliability.

Industry Applications

Our 2D Matrix Fiber Arrays are the backbone of advanced optical systems across several sectors:

Telecommunications & Data Canters: Powering MEMS switches for high-speed, reliable optical routing.
Automotive & LiDAR: Essential for precision beam shaping in 3D mapping and autonomous vehicle sensing.
Aerospace & Robotics: Integrated into multi-channel rotary joints for signal transmission in radar systems and wind turbines.

Additional information

Connector interface (termination)	MPO, MMC, ST, FC, SC, LC, E2000
Anti-reflective coating	reflectivity and bandwidth according to custom requirements
External dimensions of the field [mm]	typically 5×5, 10×10, 15×15 or custom sizes
Stressor rotation error for PM fiber [°]	+/- 1.5 or +/- 2.5
Extinction ratio [dB] (PM Fiber type)	20, 25, or 30
Operating temperature [°C]	SM & MM = -40 to +85 PM = -20 to +70
Fiber/lens array arrangement	matrix (mxn), hexagonal, custom
Fiber array material	fused silica, borosilicate glass, silicon
Lens array material	fused silica, BK7, silicon
Outgoing beams Wavelength [nm]	850, 980, 1310, 1550 and others
Outgoing beam Insertion loss [dB]	type 1
Outgoing beam Back reflection [dB]	> 50
Direction error of the outgoing beam [°]	< 0.2
outgoing beam width [µm]	70 – 1000
